Introduction
As networks become more data-hungry and space-constrained, the traditional single-core fiber model struggles to keep up. Enter multi-core fiber (MCF) technology, which packs multiple fiber cores into a single cable. A key enabler in this technology is the 4-core fan-in/fan-out device, which simplifies connectivity between MCF backbones and standard fiber interfaces. This blog explores what these devices are, where they shine, and why they’re a valuable tool in today’s advanced fiber networks.
What is a 4-Core Fan-in/Fan-out Device?

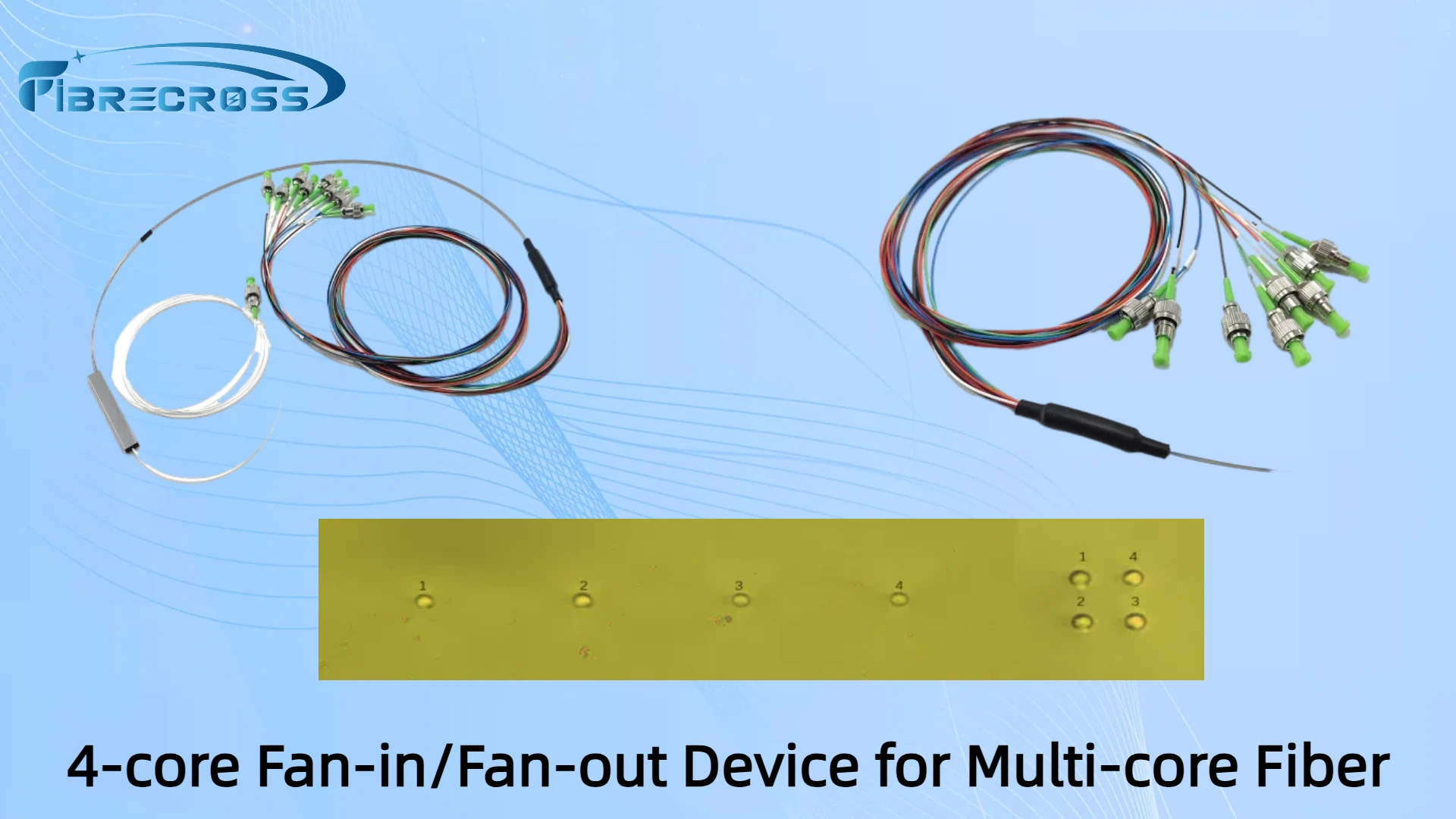

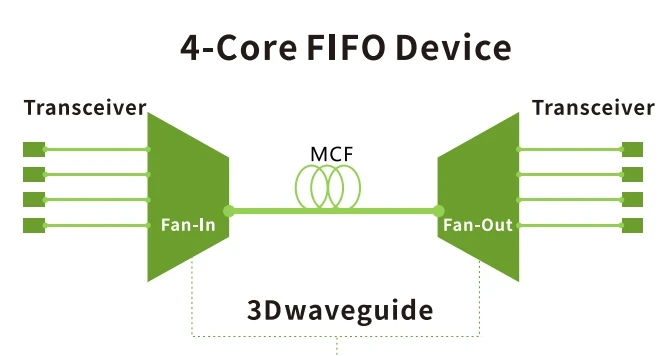

A 4-core fan-in/fan-out device acts as a bridge between high-capacity multi-core fiber cables and conventional single-fiber equipment. It works by either:
- Fan-in: Combining four single-core fibers into one 4-core MCF for compact trunking.
- Fan-out: Splitting one 4-core MCF into four separate single-core outputs, typically with standard connectors.
This simple yet effective component enhances deployment flexibility in data centers, telecom sites, and enterprise campus networks.
Why Use Fan-in/Fan-out in Fiber Networks?
✔ Space Savings
A single MCF with four cores uses far less physical space than four individual fiber cables, freeing up conduit and rack capacity.
✔ Simplified Cabling
Managing one cable instead of four reduces installation complexity, speeds up deployment, and cuts maintenance time.
✔ Cost-Effective Scalability
Fan-in/fan-out assemblies enable modular growth—perfect for expanding infrastructure without reworking existing layouts.
Typical Use Cases
1. Data Center Interconnects (DCI)
In spine-leaf network designs, 4-core MCF cables deliver high-capacity links between switch layers. Fan-out ends connect directly to standard transceivers, eliminating the need for complex patching schemes.
2. Telecommunications Infrastructure
Operators use 4-core fan-in/fan-out solutions in fiber-to-the-home (FTTH) or metro aggregation networks to minimize fiber usage and reduce installation footprint in congested ducts.
3. Enterprise Campuses
Multi-building campuses benefit from outdoor-rated MCF cables with fan-out interfaces in IDFs (Intermediate Distribution Frames) for quick connection to switches or patch panels.
4. High-Performance Clusters
HPC systems rely on low-latency, high-bandwidth links. The compact nature of MCF with fan-out cables supports the dense rack environments found in these facilities.
Key Product Features to Look For
When selecting a 4-core fan-in/fan-out device, these features ensure performance and longevity:
- Fiber Compatibility: Ensure support for G.657.A2 or G.652.D single-mode fiber.
- Connector Types: LC for high port density; SC or FC for legacy systems.
- Polishing Types: Choose UPC or APC depending on application loss requirements.
- Low Insertion Loss: Target ≤0.3 dB for optimal signal transmission.
- Mechanical Strength: Look for armored or ruggedized options for harsh environments.
- Customization: Vendors should offer length, jacket color, labeling, and packaging choices.
Integration Tips
- Plan Ahead: Design your trunking and patch panel layout to accommodate fan-out cable lengths and bend radius.
- Label Everything: Use color codes and fiber IDs to make future maintenance easy.
- Test Before Deployment: Pre-terminated assemblies should be verified with IL/RL reports or OTDR testing.
- Use Bend-Insensitive Fiber: For tight spaces, bend-insensitive MCF helps avoid signal degradation.
Final Thoughts
4-core fan-in/fan-out devices are transforming the way fiber networks are built and expanded. They bring a perfect balance of performance, flexibility, and ease of use, especially in environments where space and efficiency are top priorities. As demand for bandwidth and scalability continues to rise, these compact fiber tools will play a growing role in helping networks adapt to future challenges.
Whether you’re working on a data center, telecom site, or large enterprise network, integrating MCF solutions with fan-in/fan-out technology is a forward-looking move that delivers long-term value.
