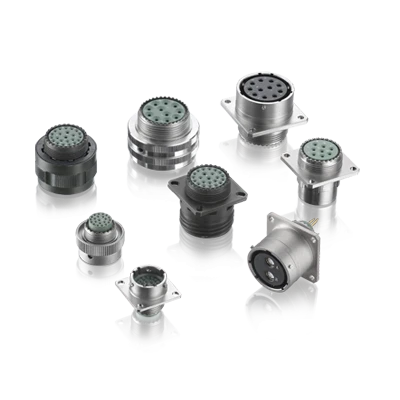

MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector

MIL-DTL-38999 iii Series Small Circular Connector

Quick lock thread with anti-loosening mechanism

100% scoop-proof to ensure no damage to the contacts in a blind mating application

With grounding reeds to strengthen EM/RFI shielding

25% lighter than the general aluminum shell type

Material of MIL-DTL-38999 iii Small Circular Connectors

Shell carbon fiber reinforced thermoplastic material

Finish: olive drab cadmium plating (J) nickel plating (M)

Insulation Mounting Plate: thermoplast

Seal Ring: silicon rubber elastomer

38999 Contacts: copper alloy

Finish: nickel with gold plating

Mechanical Performance of MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector

Durability: 1500 mating cycles

Electrical Performance of MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector

Electrical Conductivity Between the Shell : 3mV

Shielding : 100MHz : 90dB           1GHz : 85dB

                           10GHz(M): 65dB         10GHz(J): 50dB

Environment Performance of MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector

Temperature Range : olive drab cadmium plating (J): -65℃~+175℃

                                               nickel plating (M): : -65℃~+200℃

Salt Spray: 2000h.
